Web Traffic Analytics - Marketplace Package

Overview

• Total pageviews for the website
• Weekly page visits
• Top visited page sections
• Pageviews heatmap by country
• Total pageviews by device
• Weekly page visits by channel
• Total and weekly conversions by medium
• Campaign effects on conversion

To add custom metrics after installation, contact TD support.

Use Cases

• Track web-traffic KPIs and gain valuable insights to monitor resources.
• Track performance of marketing channels and campaigns on website traffic and conversions
• Measure and communicate the business value of CDP across your organization.

Prerequisites and Limitations

• TD Account must have Treasure Insights (TI) enabled.
• TD user installing the package must have Edit Data Models & Dashboards TI permissions in TD.
• TD user installing the package must have Workflow Edit & Run permissions in TD and must have access to the databases where the tables with the KPI metrics live.
• It is recommended that you monitor datamodel size monthly in the V5 console under the Insights Models tab and ensure it does not exceed 4 GB over time. This should not happen with the Out-of-Box (OTB) configuration, contact TD support in the rare event that this occurs.

Setup

Perform the following main steps for configuring the package installation in the Marketplace UI. Note that each step in the UI also comes with notes and examples that can guide you through the installation process.

1. Global Params

If you want to create a new working database, create one in TD and provide the name. Ensure that a project name is new and unique, which reduces the risk of losing existing workflows.

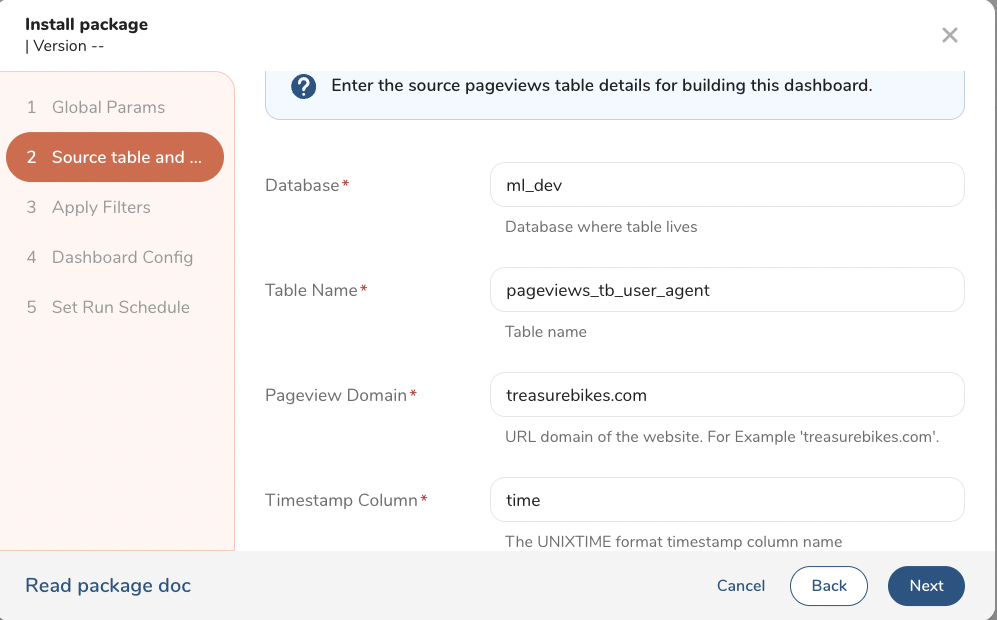

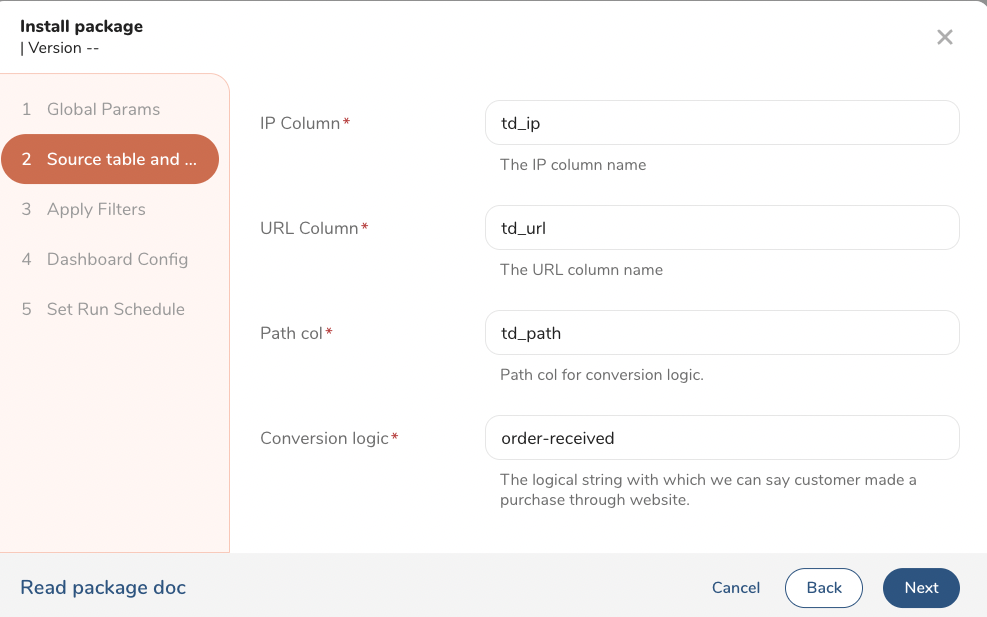

2. Source Table and Columns

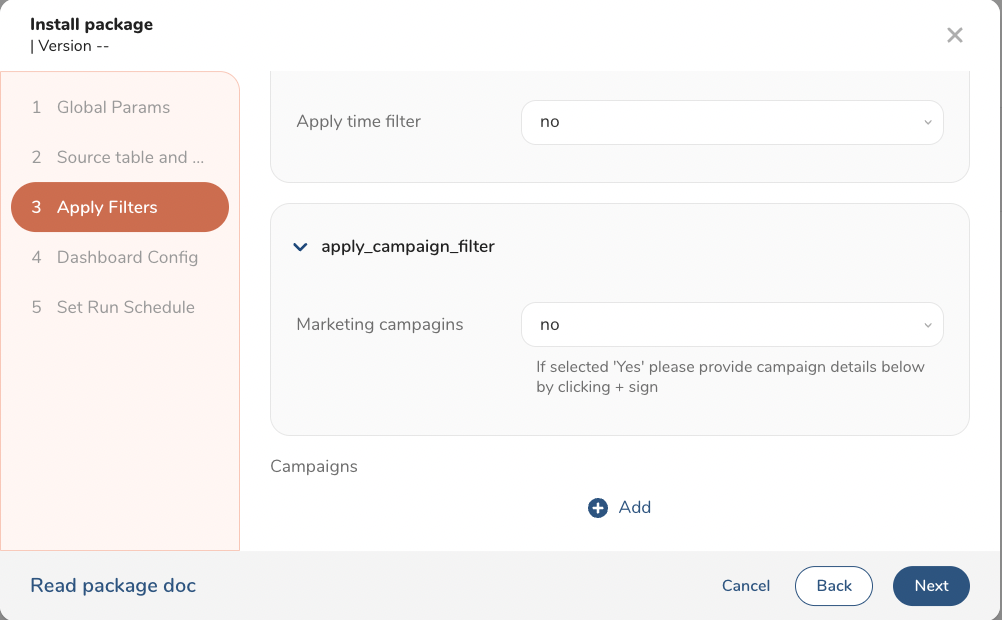

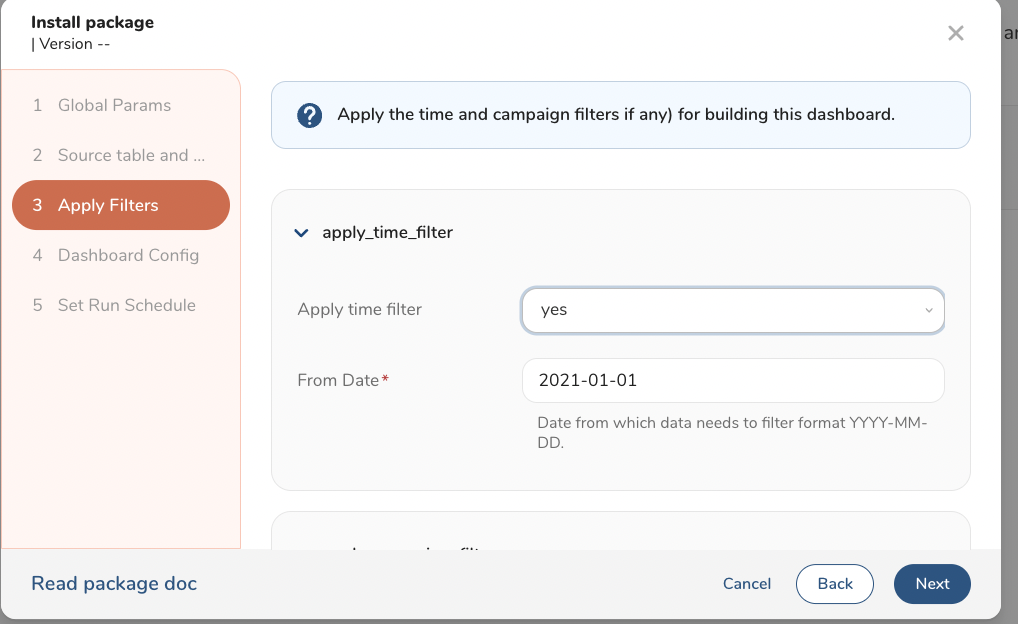

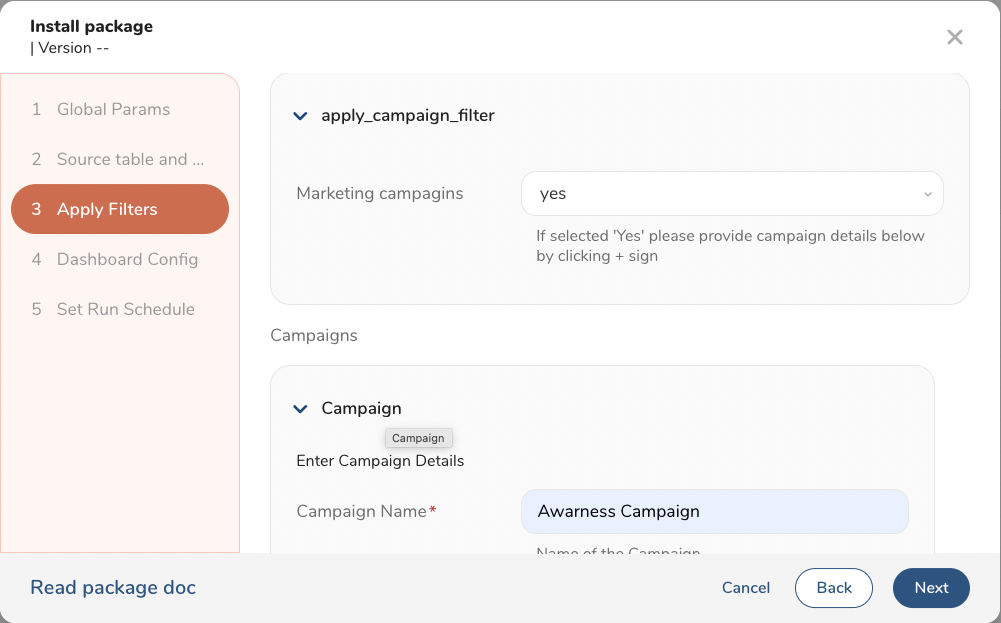

3. Filters

Define custom filters if you want to define specific dates from which KPI metrics will be tracked. For example, configure marketing campaigns with a start and end date in order to track metrics across campaigns in that period.

4. Dashboard Params

Provide a list of emails of TD users who should have access to the dashboard after the package is installed.

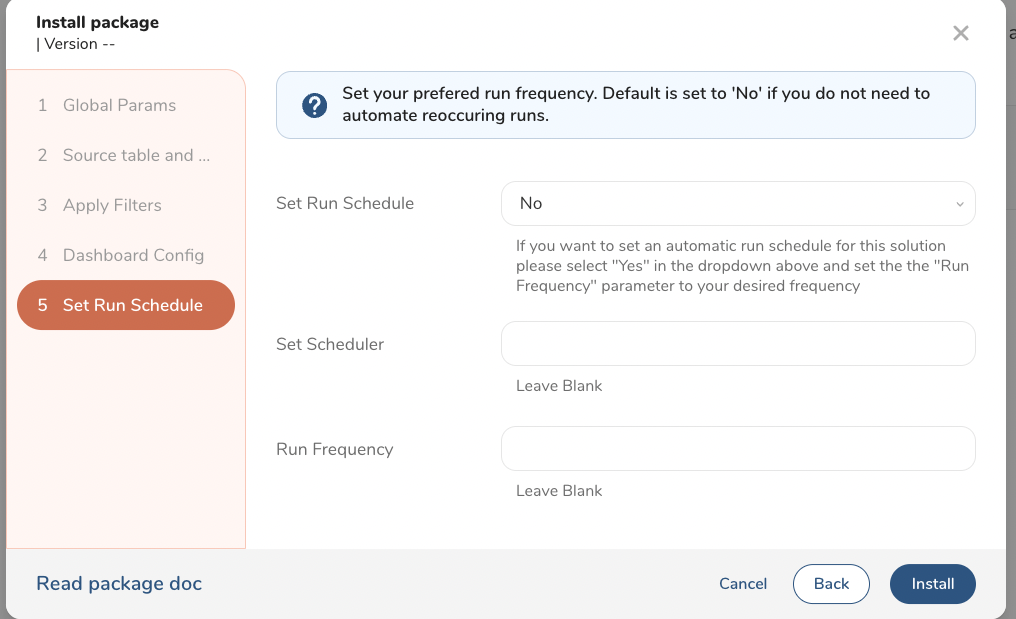

5. Set Run Schedule

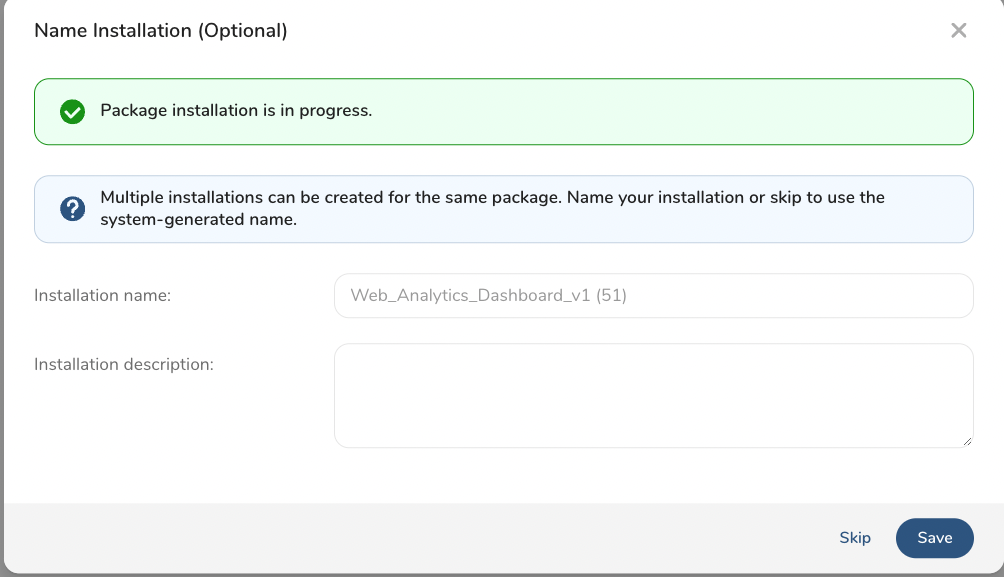

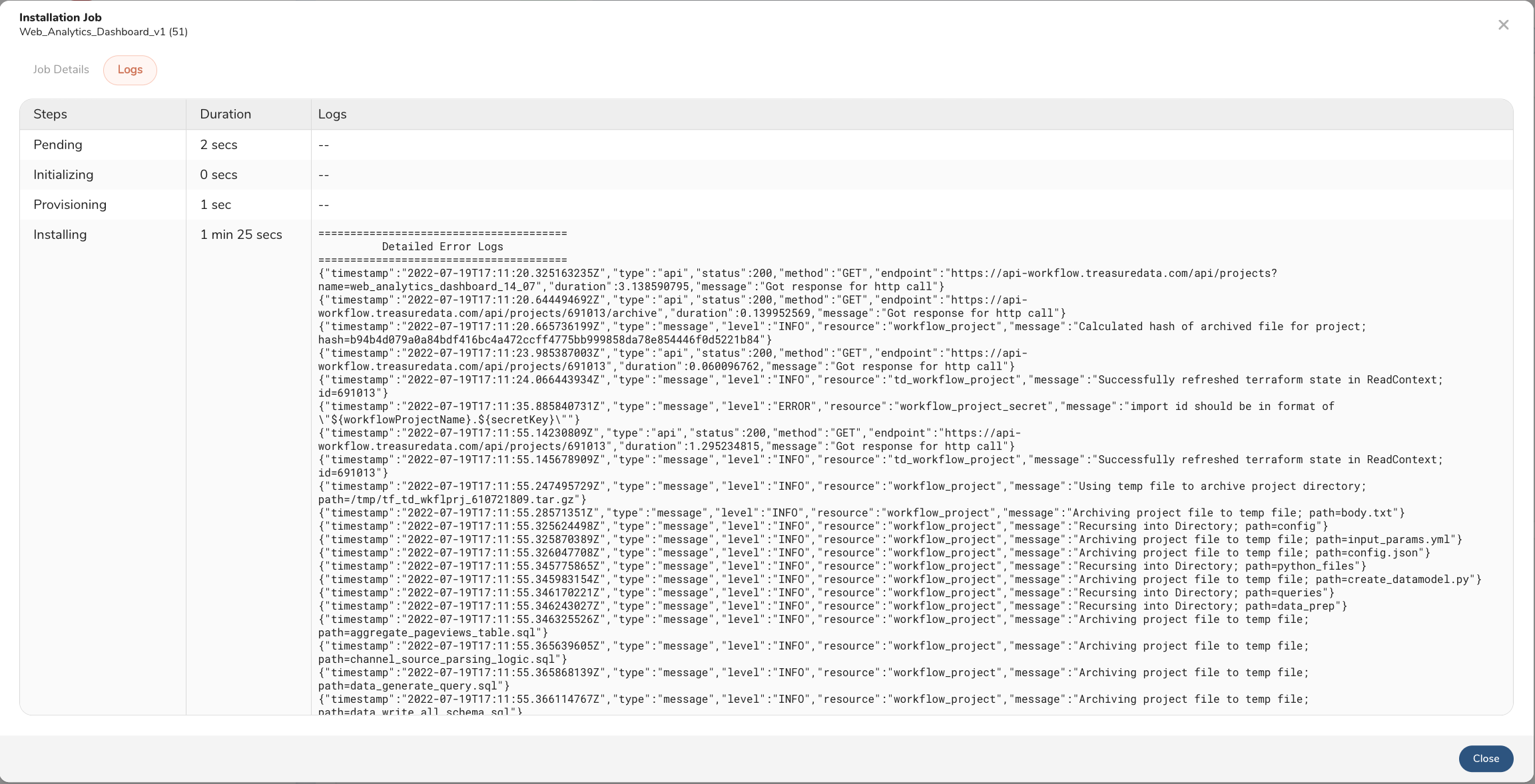

6. Install and Monitor Logs

After you fill out the prameters in the UI for the first five steps, you will be presented with an Install button. Select that and you will be linked to a screen where you can monitor the installation logs. If you get a success message, it means that all parameters were accepted and the package was installed succesfully in your TD account. If you get an error message, check the Error Logs for more details. If you cannot determine the reason of the failure, contact TD technical support.

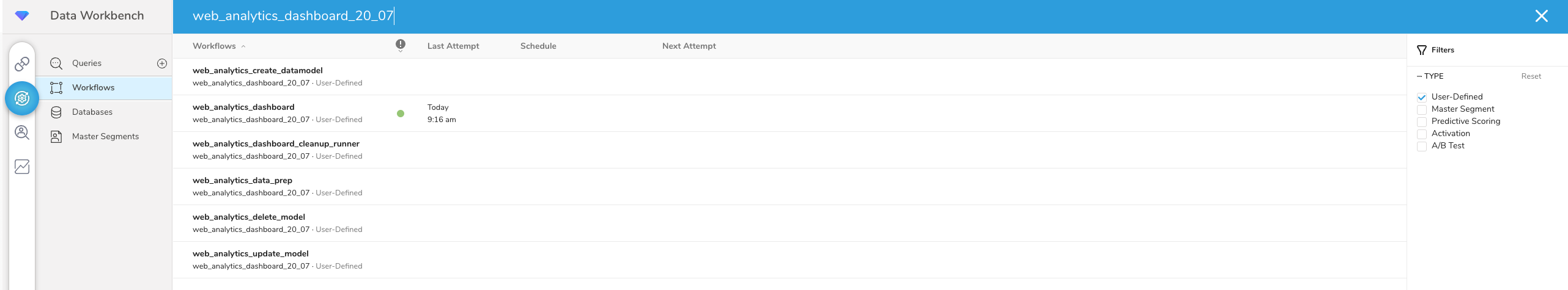

7. Wait for Project Run and Dashboard Build

Edit Configuration Parameters

1. config/input_params.yml - Controls important parameters, which are often applied globally across most of the data sources and processes in the workflow.
   Copy

   Copied

   #####################################################################
   ########################## GLOBAL PARAMS ############################
   #####################################################################

   globals:
     sink_database: test_suraj                        #database where the model output tables are saved
     main_id_key: td_canonical_id                     #main unique identifier column_name
     api_endpoint: 'api.treasuredata.com'             #API endpoint for the TD account where customer data lives

     model_config_table: 'datamodel_build_history'   #table where model buildout history and OIDs are saved
     run_data_prep_wf: 'no'                          #controls if data preparation workflow needs to be run
     create_model: 'no'                              #controls if new data model will be created using Python Scripts and config.json params
     update_insights_model: 'no'                     #controls if data model that was created for Dashboard will be built and updated
     cleanup_temp_tables: 'yes'                      #cleansup temporary tables
     delete_model: 'no'                              #controls if data model will be deleted
     project_prefix: Web_analytics                   #all output tables and project sub-workflows will start with this prefix

   ############# INPUT PAGEVIEWS TABLE #########################
   pageviews_table_db: ml_dev                          #source database
   pageviews_table_name: pageviews_tb_user_agent       #source table
   pv_main_domain: 'treasurebikes.com'                 #website to parse traffic for
   pv_unixtime_col: time                               #web visits event time col
   pv_ip_col: td_ip                                    #web visits ip col
   pv_url_col: td_url                                  #web visits url col
   pv_conversion_logic: REGEXP_LIKE(td_path, 'order-received')     #web visits logic for conversion

   ################ CUSTOM DATA FILTER PARAMS #####################
   apply_time_filter: 'yes'                           #data filter yes/no pertaing to time
   start_date: 2021-01-01                             #date to filter data from
   filter_regex: WHERE REGEXP_LIKE(td_language, 'uk|en')

   ######### TIME FILTER CAMPAIGN LABELS ######################
   create_custom_date_flags: 'no'   #campaign filter yes/no if any

   date_all_flags:
     - label: 'None'
       start_date: '0000-00-00'
       end_date: '0000-00-00'

   date_flags: "<%= config.apply_campaign_filter.apply_campaign_filter2 %>" #campaign filter yes/no if any

   date_flags_new:            #campaigns and their start and end date
     - label: 'Awareness Campaign'
       start_date: '2021-02-21'
       end_date: '2022-03-01'
     - label: 'Retargeting Campaign'
       start_date: '2021-03-01'
       end_date: '2022-03-01'

   ####################### TEMPORARY TABLES LIST #########################
   temporary_tables:
     - pageviews_temp

2. config.json - Controls important parameters used by Python Custom Scripting .py files to create the final JSON for the datamodel and build and share it via the API.
   Copy

   Copied

   {
   "model_name":  "test_web_analytics_insight_model3" (name of datamodel)
   ,
   "model_tables": [
     {"db":"test_suraj","name":"web_analytics_global_time_filter"},
     {"db":"test_suraj","name":"web_analytics_pageviews_aggregate"},
     {"db":"test_suraj","name":"web_analytics_path_stats"},
     {"db":"test_suraj","name":"web_analytics_unqiue_visitors"}
                   ] (list of tables to be added to datamodel)
   ,
   "shared_user_list": ["saisuraj.argula+psdemo@treasure-data.com"] (list of users to share datamodel with)
   ,
   "change_schema_cols": {"date": ["event_date"], "text": ["ENTER_NAME"], "float": ["ENTER_NAME"], "bigint": ["ENTER_NAME"]} (list of columns you want to change datatype from raw table to datamodel. Ex. in "date" you provide column names that will be converted to `datetime`)
   ,
   "join_relations": {"pairs":
   [
     {"db1": "test_suraj","tb1":"web_analytics_global_time_filter","join_key1":"event_date","db2": "test_suraj","tb2":"web_analytics_pageviews_aggregate","join_key2":"event_date"},
     {"db1": "test_suraj","tb1":"web_analytics_global_time_filter","join_key1":"event_date","db2": "test_suraj","tb2":"web_analytics_path_stats","join_key2":"event_date"},
     {"db1": "test_suraj","tb1":"web_analytics_global_time_filter","join_key1":"event_date","db2": "test_suraj","tb2":"web_analytics_unqiue_visitors","join_key2":"event_date"}
   ] (if any joins were required you can add a list of table_name:join_key pairs)
                     }
   }

Tasks and Outputs

DigDag Tasks Summary

• web_analytics_dashboard.dig - Runs the main project workflow that triggers an entire project execution end-to-end, including all sub-workflows and queries in project folder. Contains scheduling parameters of the workflow.
• web_analytics_dashboard_data_prep.dig - Reads from the input_params.yml file and executes a list of tasks and queries that will extract data from the source tables and then aggregating metrics to store the aggregated data in sink database.
• web_analytics_dashboard_datamodel_create.dig - Creates the datamodel that powers the Dashboard by reading from the config.json file.
• web_analytics_dashboard_update_model.dig - Updates the existing datamodel or dashboard with the latest data generated by each workflow run.
• web_analytics_cleanup_runner.dig - Cleans up the temporary tables created in the sink databases in the process of creating the datamodel.
• web_analytics_delete_model.dig - Optional workflow that comes with the package and can be used to delete the datamodel created in the past to recreate a new one.

Table Outputs

• web_analytics_global_time_filter - Table of all dates and campaign date filters.

• web_analytics_pageviews_aggregate - This table aggregates unique vistors for page and conversions across channel, source, campaign date.

• web_analytics_path_stats - This table aggregates the daily total visitors and unique vistors for each of paths.

• web_analytics_unqiue_visitors - This table aggregates the daily visitors and unique visitors.

Datamodel and Dashboard Overview

Data engineers or analysts who are comfortable with Workflows and Treasure Insights can easily add more custom metrics to this dashboard by using the workflow configuration files and custom SQL queries.

Dashboard Screenshots

Additional Code Examples

• extract_pageviews - Contains event_date, this, that, referral_domain and etc.
• extract_pageviews_date_filter.sql - This query reads the data from the source database and table extracting parameters like country, city from ip column, utm parameters from url column and browser details from user_agent column. Further, data is filtered by start date provided while installing the project.
  Copy

  Copied

  WHERE TD_TIME_RANGE(${pv_unixtime_col}, '${start_date}')

  If not provided, this query is bypassed by following query without any filter.

• extract_pageviews_temp.sql - This query reads the data from the source database and table extracting parameters like country, city from ip column, utm parameters from url column and browser details from user_agent column.
• channel_source_parsing_logic.sql - This query reads the data from the source database and table extracting parameters for device, channel and source, campaign, referral domain, so on.
• aggregate_pageviews_table.sql - This query aggregates pageviews and conversions on event_date, channel, source, campaign, referal_domain, country_ip, city_ip, device. This table powers the Web Traffic Analytics Dashboard widgets and filters.
• path_visits.sql - This query aggregates total visitors and unique visitors on date and paths. This table powers the Web Traffic Analytics Dashboard widgets and filters.
• unique_visitors.sql - This query aggregates total visitors and unique visitors on event date, this also counts total unique visitors, so far. This table powers the Web Traffic Analytics Dashboard widgets and filters.
• global_time_filter.sql - This query generates all date and campaigns on those days from the input parameters. This table powers the Web Traffic Analytics dashboard widgets and filters.

FAQs

1. How to modify and re-run a workflow?

2. How to schedule workflow if it was not scheduled during package install?

###################### SCHEDULE PARAMS ##################################

To schedule the workflow, add syntax so that the final syntax looks as follows:

###################### SCHEDULE PARAMS ##################################
timezone: UTC

schedule:
  daily>: 07:00:00

The above example will automatically run the workflow every day at 7:00 am UTC time. For more scheduling options, refer to the DigDag documentation at Setting up a Schedule.

3. Will I lose my project outputs if I delete or uninstall Package?

No. Output Tables, Workflow or Dashboards created by the package will NOT be deleted if the package is uninstalled.

4. What should I do if I need Technical Support to set up a package?

Contact your TD representative and they will be able to dedicate an Engineering resource that can help guide you through the installation process and help you with any troubleshooting or code customizations, if needed.
