Hive Performance Tuning

Performance tuning your environment is recommended as a regular part of maintaining your system. Here are some performance tuning tips:

• Leveraging Time-based Partitioning
  • Using WHERE time <=> Integer
  • Using TD_TIME_RANGE
• Set Custom Schema
• DISTRIBUTE BY ... SORT BY versus ORDER BY
• Avoid SELECT count(DISTINCT field) FROM tbl
• Considering the Cardinality within GROUP BY
• Efficient Top-k Query Processing using each_top_k
• Exploding Multiple Arrays at the Same Time with TD_NUMERIC_RANGE and TD_ARRAY_INDEX

Prerequisites

• Basic knowledge of Treasure Data.
• Basic knowledge of the Hive Query Lanaguage

Leveraging Time-based Partitioning

All imported data is automatically partitioned into hourly buckets, based on the time field within each data record. By specifying the time range to query, you avoid reading unnecessary data and can thus speed up your query significantly.

Using WHERE time <=> Integer

When the time field within the WHERE clause is specified, the query parser will automatically detect the partitions to process. This auto detection will not work if you specify the time with float instead of int.

[GOOD]: SELECT field1, field2, field3 FROM tbl WHERE time > 1349393020
[GOOD]: SELECT field1, field2, field3 FROM tbl WHERE time > 1349393020 + 3600
[GOOD]: SELECT field1, field2, field3 FROM tbl WHERE time > 1349393020 - 3600
[BAD]:  SELECT field1, field2, field3 FROM tbl WHERE time > 13493930200 / 10
[BAD]:  SELECT field1, field2, field3 FROM tbl WHERE time > 1349393020.00
[BAD]:  SELECT field1, field2, field3 FROM tbl WHERE time BETWEEN 1349392000 AND 1349394000

Using TD_TIME_RANGE

An easier way to slice the data is to use TD_TIME_RANGE UDF.

[GOOD]: SELECT ... WHERE TD_TIME_RANGE(time, "2013-01-01 PDT")
[GOOD]: SELECT ... WHERE TD_TIME_RANGE(time, "2013-01-01", "PDT", NULL)
[GOOD]: SELECT ... WHERE TD_TIME_RANGE(time, "2013-01-01",
           TD_TIME_ADD("2013-01-01", "1day", "PDT"))

However, if you use division in TDTIMERANGE, time partition optimization doesn’t work. For instance, the following conditions disable optimization.

[BAD]: SELECT ... WHERE TD_TIME_RANGE(time, TD_SCHEDULED_TIME() / 86400 * 86400))
[BAD]: SELECT ... WHERE TD_TIME_RANGE(time, 1356998401 / 86400 * 86400))

Set Custom Schema

All tables have two fields:

• v
• time

You can also set custom schema on the tables.

$ td schema:set testdb www_access action:string user:int
$ td query -w -d testdb "SELECT user, COUNT(1) AS cnt
     FROM www_access
     WHERE action='login'
     GROUP BY user ORDER BY cnt DESC"

After setting the schema, queries issued with named columns instead of v will use the schema information to achieve a more optimized execution path. In particular, GROUP BY performance will improve significantly.

DISTRIBUTE BY ... SORT BY versus ORDER BY

In Hive, ORDER BY slows because it forces all the data to go into the same reducer node. By doing this, Hive ensures that the entire dataset is totally ordered.

Sometimes we do not require total ordering. For example, suppose you have a table called user_action_tablewhere each row has user_id, action, and time. Your goal is to order them by time per user_id.

If you are doing this with ORDER BY, you would run

SELECT time, user_id, action FROM user_action_table
ORDER BY user_id, time

However, you can achieve the same result with

SELECT time, user_id, action FROM user_action_table
DISTRIBUTE BY user_id SORT BY user_id, time

The reason is because all the rows belonging to the same userid go to the same reducer ("DISTRIBUTE BY userid") and in each reducer, rows are sorted by time ("SORT BY time"). This is faster than the other query because it uses multiple reducers as opposed to a single reducer.

You can learn more about the differences between SORT BY and ORDER BY.

Avoid SELECT count(DISTINCT field) FROM tbl

This query looks familiar to SQL users, but this query is very slow because only one reducer is used to process the request.

SELECT count(DISTINCT field) FROM tbl

Rewrite the query to leverage multiple reducers:

SELECT
  count(1)
FROM (SELECT DISTINCT field FROM tbl) t

Considering the Cardinality within GROUP BY

Often, GROUP BY can be faster if you carefully order a list of fields within the GROUP BY clause in order of high cardinality.

Efficient Top-k Query Processing using each_top_k

Efficient processing of Top-k queries is a crucial requirement in many interactive environments that involve massive amounts of data. The TD Hive extension each_top_k helps run Top-k processing efficiently.

• Suppose the following table as the input

• Then, list top-2 students for each class

The standard way using SQL window function would be as follows:

SELECT
  student, class, score, rank
FROM (
  SELECT
    student, class, score,
    rank() over (PARTITION BY class ORDER BY score DESC) as rank
  FROM
    table
) t
WHERE rank <= 2

An alternative and efficient way to compute top-k items using each_top_k is as follows:

SELECT
  each_top_k(
    2, class, score,
    class, student -- output other columns in addition to rank and score
  ) as (rank, score, class, student)
FROM (
  SELECT * FROM table
  CLUSTER BY class -- Mandatory for `each_top_k`
) t

CLUSTER BY x is a synonym of DISTRIBUTE BY x CLASS SORT BY x and required when using each_top_k.

each_top_k is beneficial where the number of grouping keys are large. If the number of grouping keys are not so large (e.g., less than 100), consider using rank() over instead.

The function signature of each_top_k is follows:

each_top_k(int k, ANY group, double value, arg1, arg2, ..., argN)
returns a relation (int rank, double value, arg1, arg2, .., argN).

Any number types or timestamp are accepted for the type of value but it MUST be not NULL. Do null handling like if(value is null, -1, value) to avoid null.

If k is less than 0, reverse order is used and tail-K records are returned for each group.

The ranking semantics of each_top_k follows SQL’s dense_rank and then limits results by k. See Hivemall User Guide for further information.

Exploding Multiple Arrays at the Same Time with TD_NUMERIC_RANGE and TD_ARRAY_INDEX

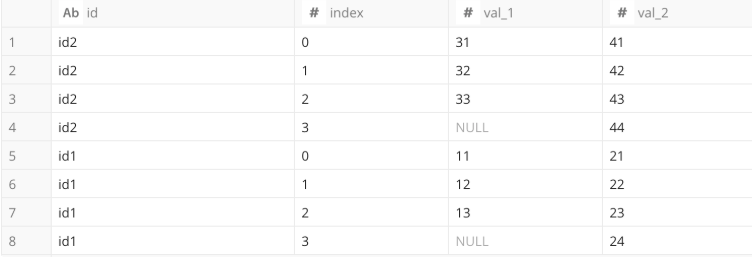

The combination of TD_NUMERIC_RANGE and TD_ARRAY_INDEX allows you to emit all the elements of an array into multiple rows using the LATERAL VIEW.

WITH t1 as (
  -- Generate sample data
  select 'id1' as id, ARRAY(11,12,13) as a, ARRAY(21,22,23,24) as b
  union all
  select 'id2' as id, ARRAY(31,32,33) as a, ARRAY(41,42,43,44) as b
)
select
   id,
   n as index,
   TD_ARRAY_INDEX( a, n ) as  val_1,
   TD_ARRAY_INDEX( b, n ) as  val_2
from
   ( select id, a, b from t1 ) t2
LATERAL VIEW
   TD_NUMERIC_RANGE( size( b ) ) n1 as n
